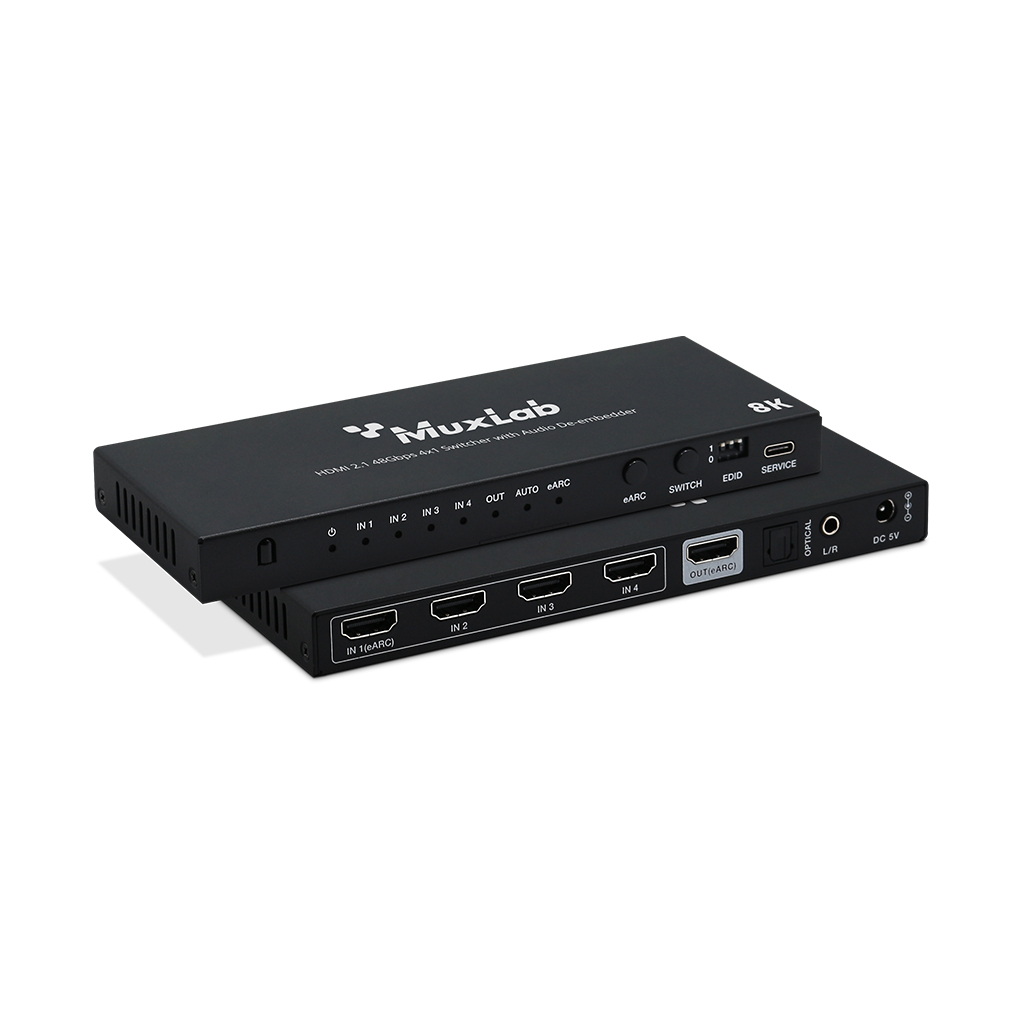

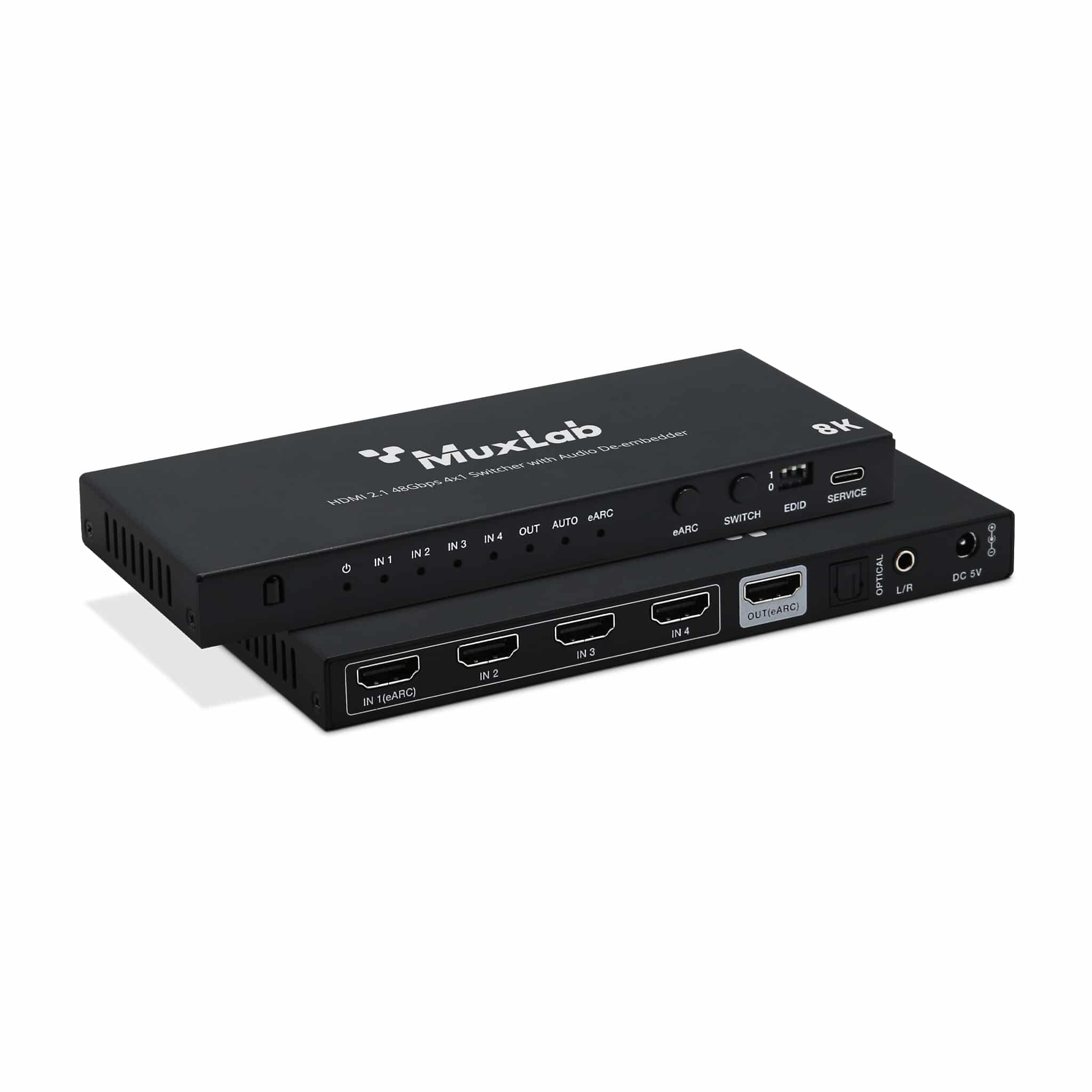

HDMI 2.1 48Gbps 4×1 Switcher W/Audio De-embed

SKU: 500513 Categories: ,

The HDMI 2.1 48Gbps 4×1 Switch with Audio De-embedder (model: 500513) is a 4-in-1-out 8K switch. It supports 4 HDMI signal inputs and 1 HDMI signal output, the highest resolution is 8K@60Hz and is backward compatible, also supports advanced EDID management, CEC control, ARC/eARC and audio de-embedded function (Output through the optical and analog audio port). The product is widely used in security monitoring, media entertainment, broadcasting, command centers, and more.


  • Ideal for security surveillance setups requiring high-resolution video switching.
  • Capable of handling 8K resolution, providing detailed and clear visuals for monitoring purposes.
  • Enhances the audio-visual experience in home theaters and entertainment systems.
  • Enables seamless switching between multiple HDMI sources, crucial for live broadcasts and production studios.
  • Supports high-quality video switching for mission-critical applications in control rooms
  • HDCP 2.3 compliant.
  • Supports 48GbpsFRL and 18GbpsTMDS video bandwidth.
  • Video resolution up to 8K@60Hz 4:2:0 12bit, 8K@30Hz 4:4:4 12bit, 4K@120Hz 4:4:4 12bit, as specified in HDMI 2.1
  • Supports HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through.
  • Supports HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through.
  • Supports HDMI input and TV eARC audio de-embedded to SPDIF and L/R audio output. Supports advanced EDID management.
  • Firmware can be upgraded through USB-C port
Weight 0.000 kg
