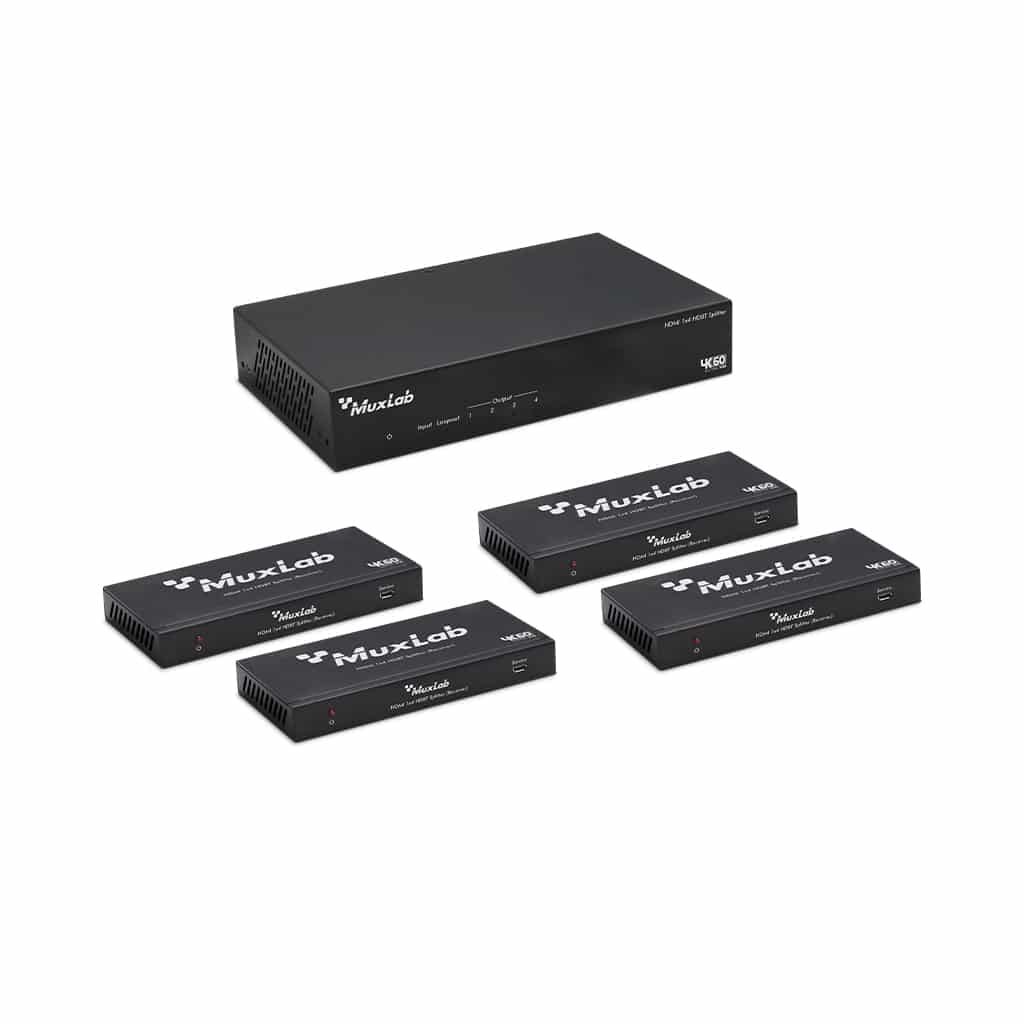

HDMI 1×4 HDBT Splitter Extender Kit 120m, 4K/60

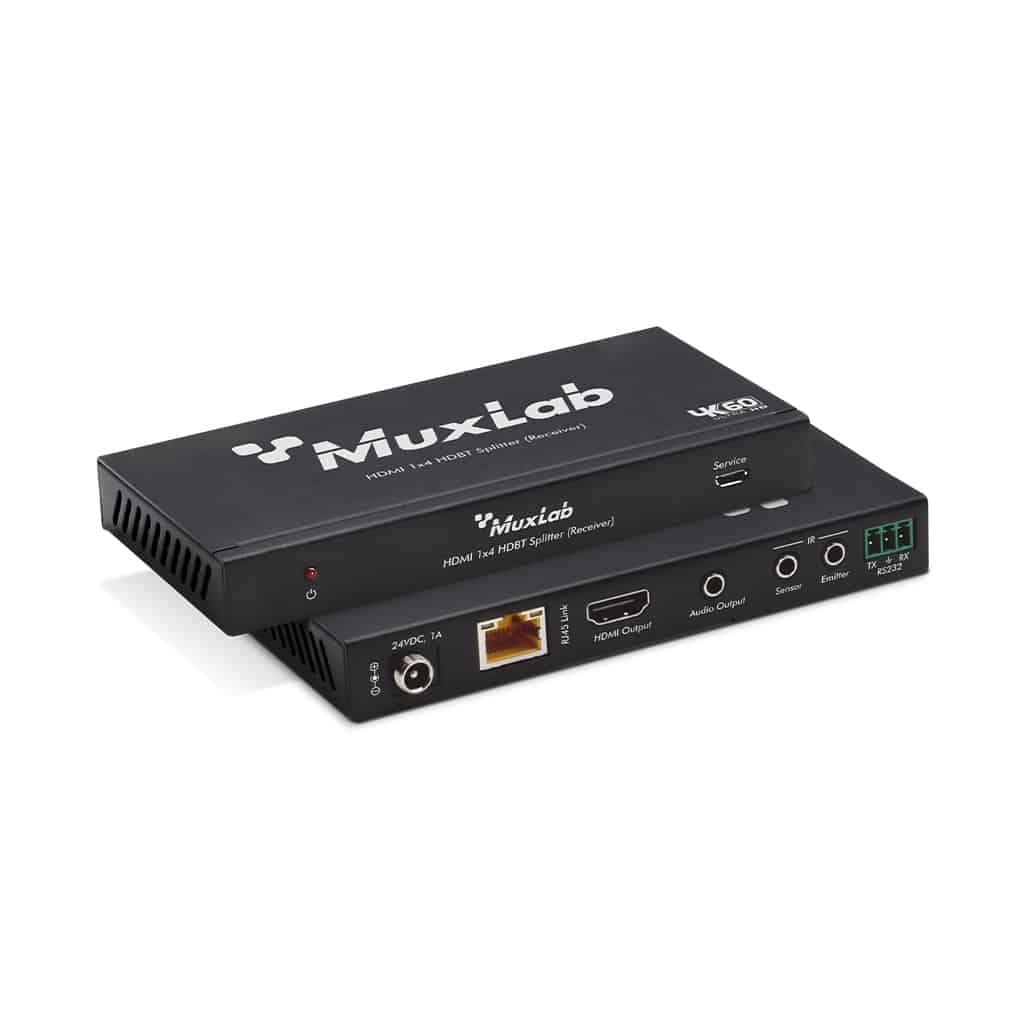

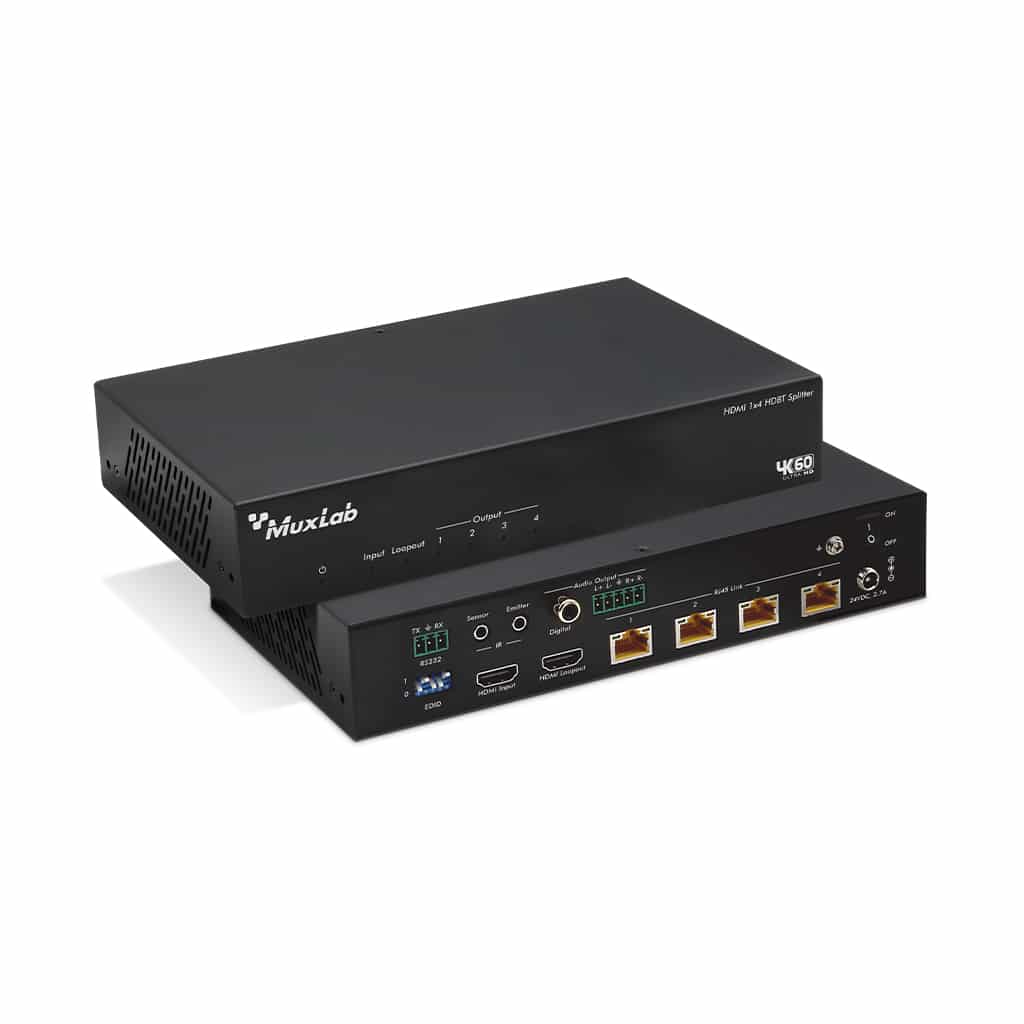

The HDMI 1×4 HDBT Splitter Extender Kit 120m, 4K/60 enables HDMI 2.0 connectivity at data rates up to 18Gbps & extends 4K/60 up to 120m (394ft) and 1080p up to 150m (492ft) over standard Cat6/6a/7 UTP cable. The splitter features HDMI input & loop out, bidirectional IR, analog & digital audio de-embedding, four HDBT output ports and RS-232 pass-through. The four receivers features HDMI output, bidirectional IR, digital audio de-embedding, HDBT input port and RS-232 pass-through. The device also supports 24VDC PoC delivery to the receiver.
The HDMI 1×4 HDBT Splitter Extender Kit 120m, 4K/60 support IR and RS232 signal pass-through, audio de-imbeddeding function and advance EDID management.
Applications:
- Conference Rooms
- Classroom Projector Systems
- Collaborative PC Systems
- Digital Signage
- Educational Institutions
- Boardroom Systems
- HDMI 2.0, HDCP 2.3 and HDCP 1.4 compliant
- Supports 18Gbps video bandwidth
- Supports video resolution up to 4K/60Hz 4:4:4
- Supports HDR, HDR10+, HLG and Dolby Vision
- Supports up to 7.1 channels audio pass-through
- Supports digital and analog audio de-embedded output
- Advanced EDID management
- Supports one way PoC function (Power over Cable)
- Compact design for easy and flexible installation
