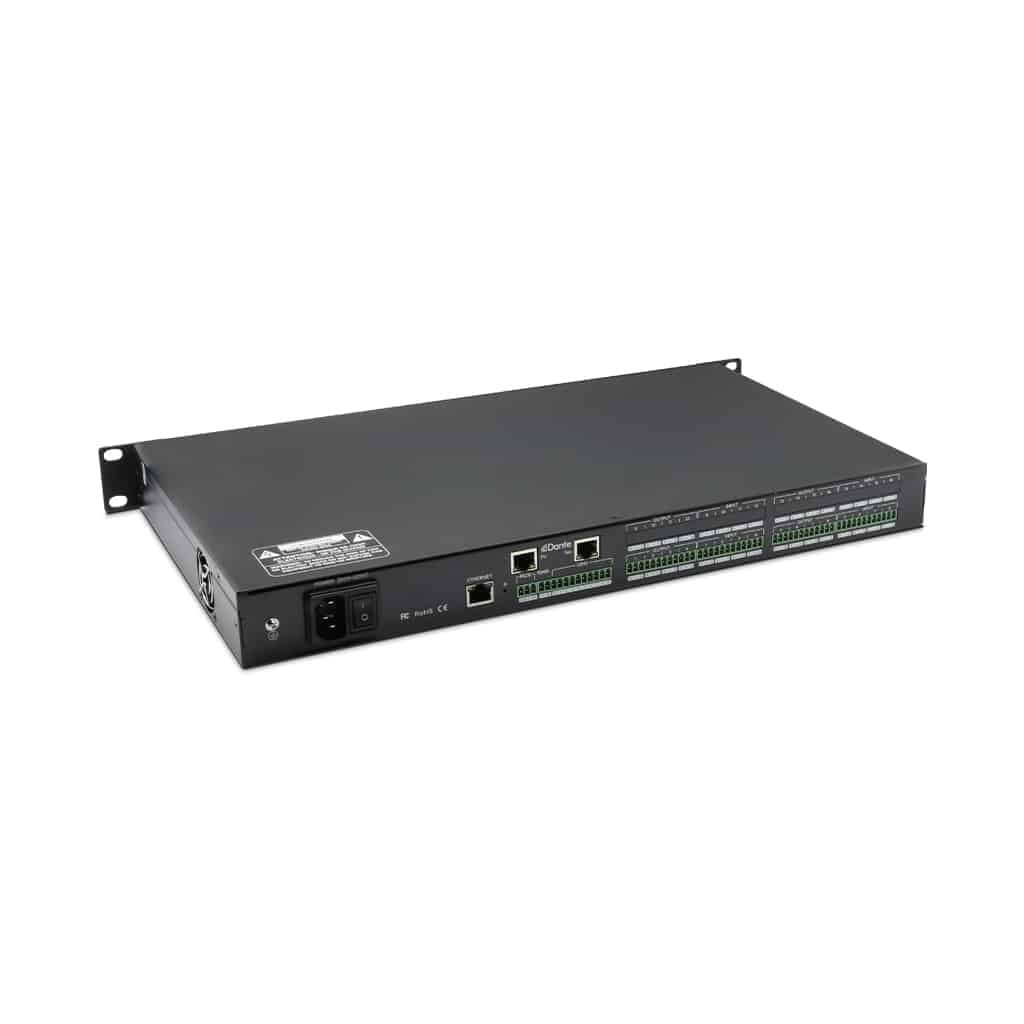

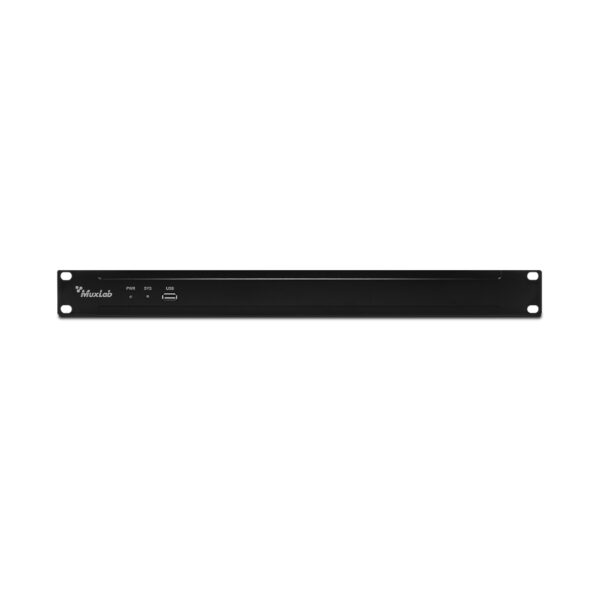

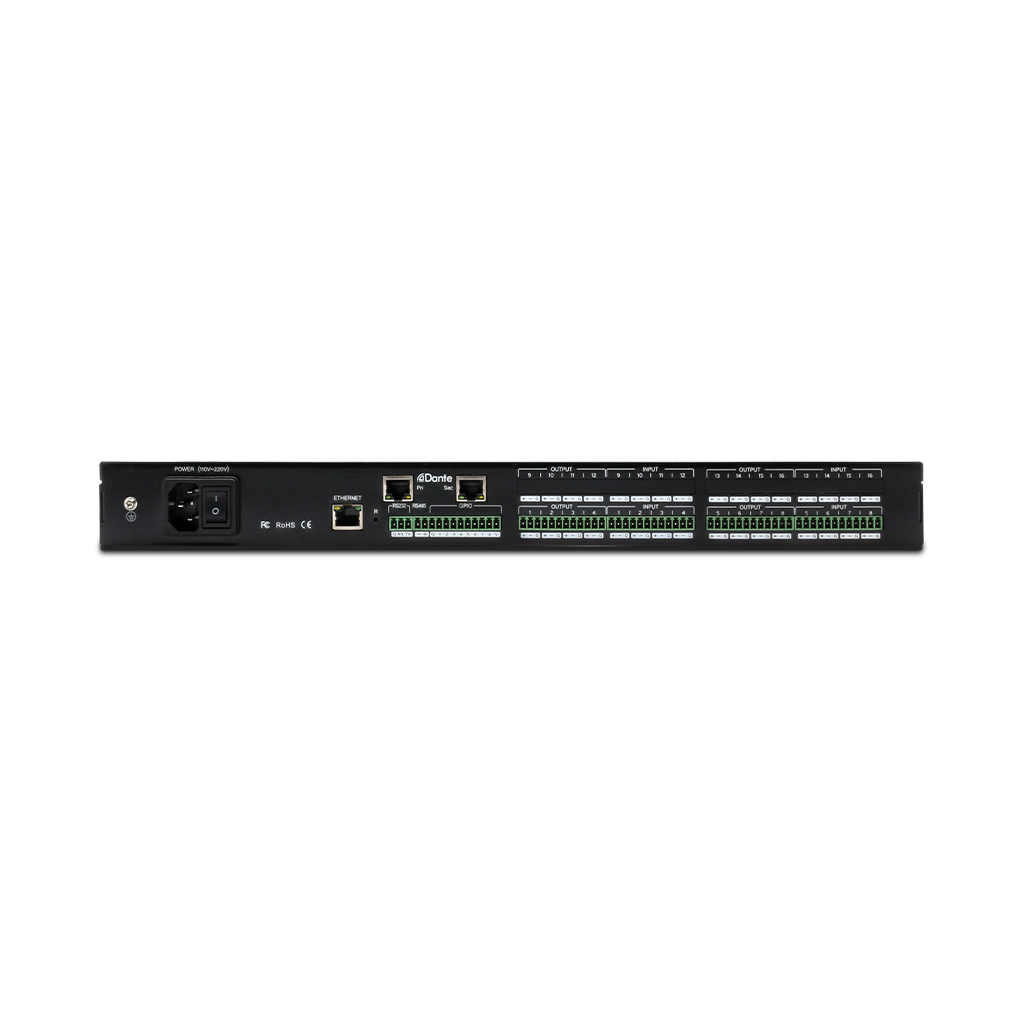

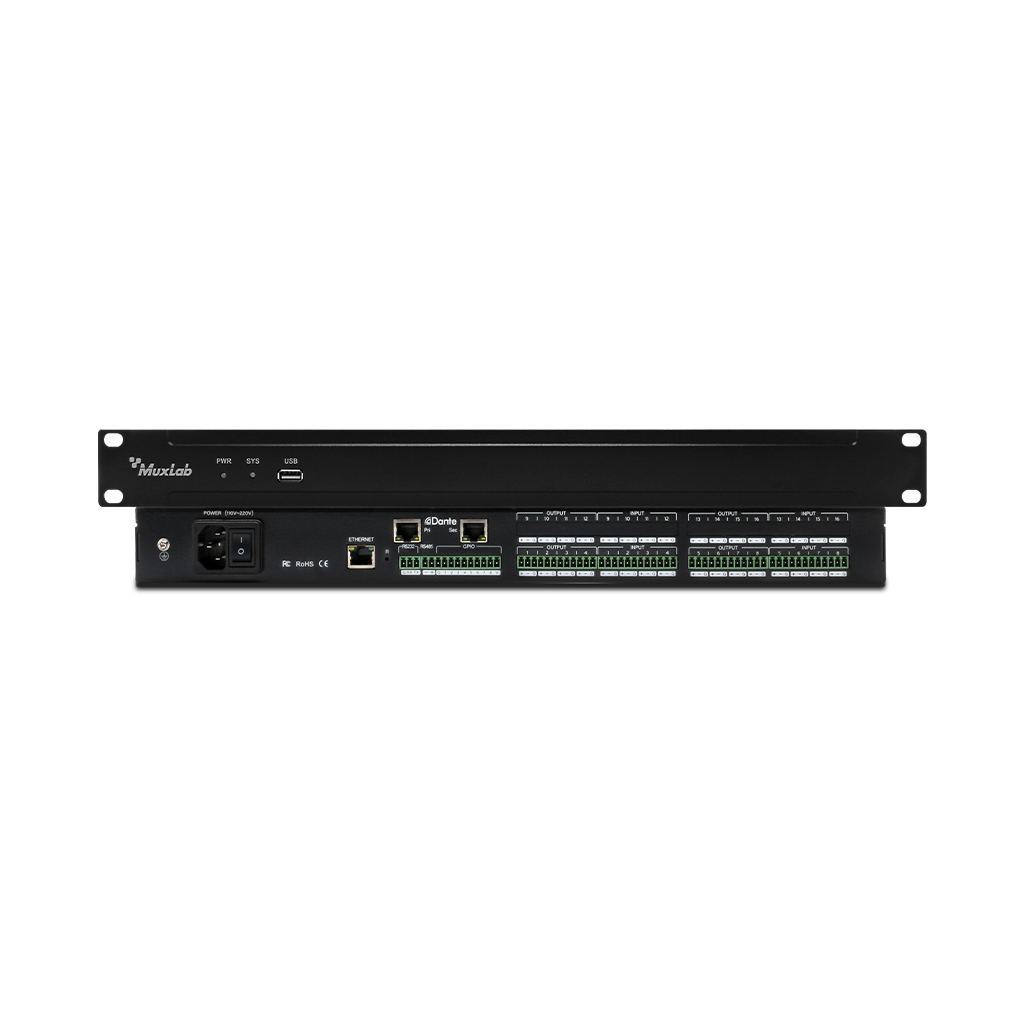

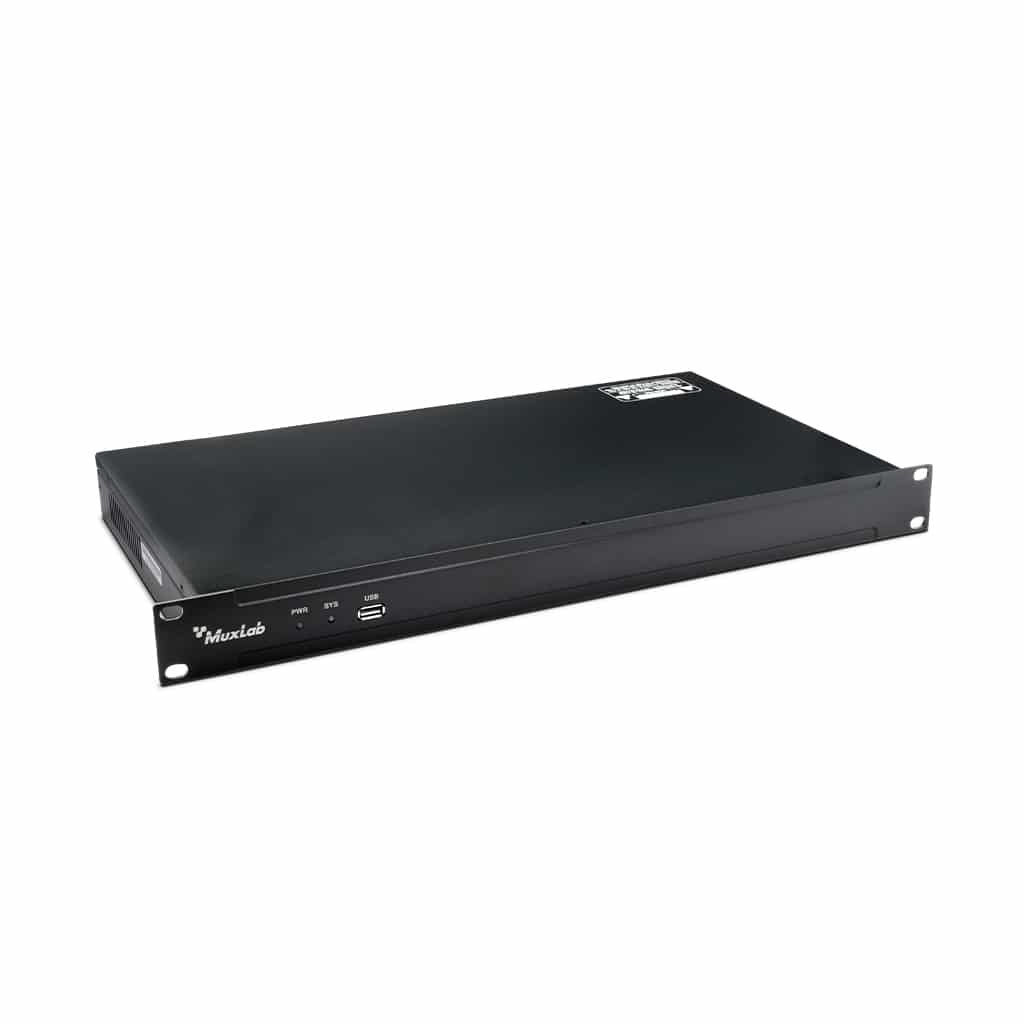

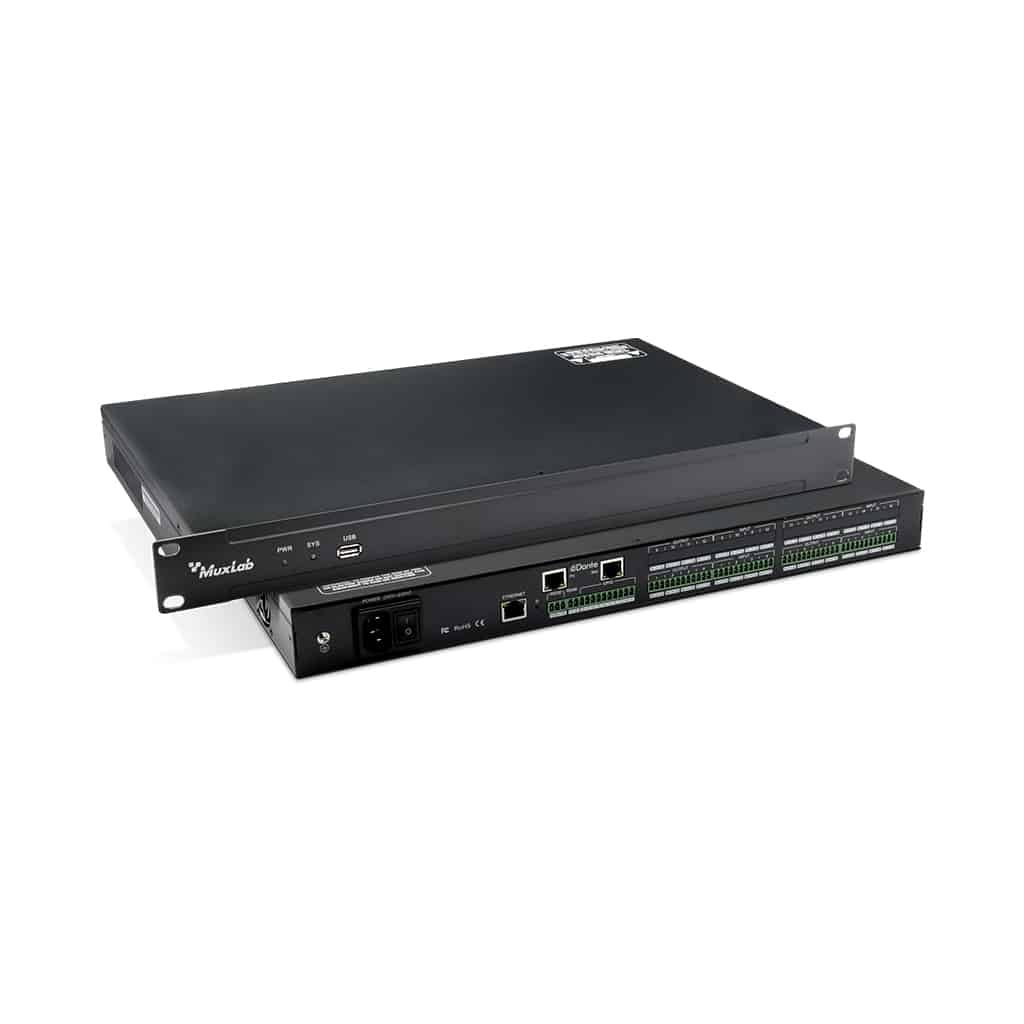

Dante 8-Channel Audio DSP
The Dante 8-Channel Audio DSP (Model 500601) is a product developed for the transmission, routing, and processing of audio signals in Dante networks. It can perform high-quality, low delay audio transmission, supports 8-way input and output balanced analog channels, and can be powered via a 110-220VAC power receptacle. This processor supports 8-way analog audio signal balance input and output and 8-way Dante digital audio signal input and output. It also features a USB audio card that supports one channel of audio input and one channel of audio output. The device has one of the best DSP algorithms in the industry that includes options such as AEC, AFC, ANC, Ducker, Compressor, Limiter, Mixer and Graphic Equalization among others. In addition, the product provides PC version control software to monitor and operate all the functions on the DSP in an easy and intuitive way. Comprehensive API Commands are available for system automatization. Supports multiple sets of scene presets.
- Built-in Dante module
- Features 8 balanced inputs and 8 balanced outputs
- Features a USB sound card
- The input supports 48VDC phantom power supply
- DSP processing functions include gain adjustment, stage parameter equalization, compressor, ducker, mixer, graphic equalization, limiter, setting, etc.
- Provides software for the Windows platform to manage all audio operations
- API provided for RS232, RS485 and TCP/IP control
- Supports AES67 RTP audio transport
- Supports GPIO for additional interface expansion
