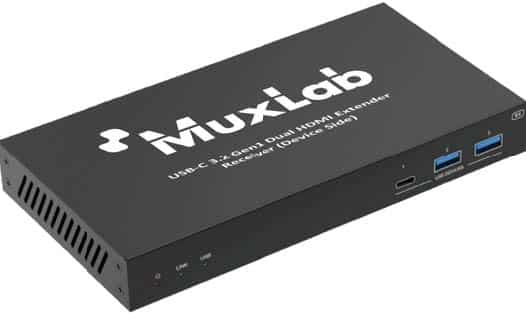

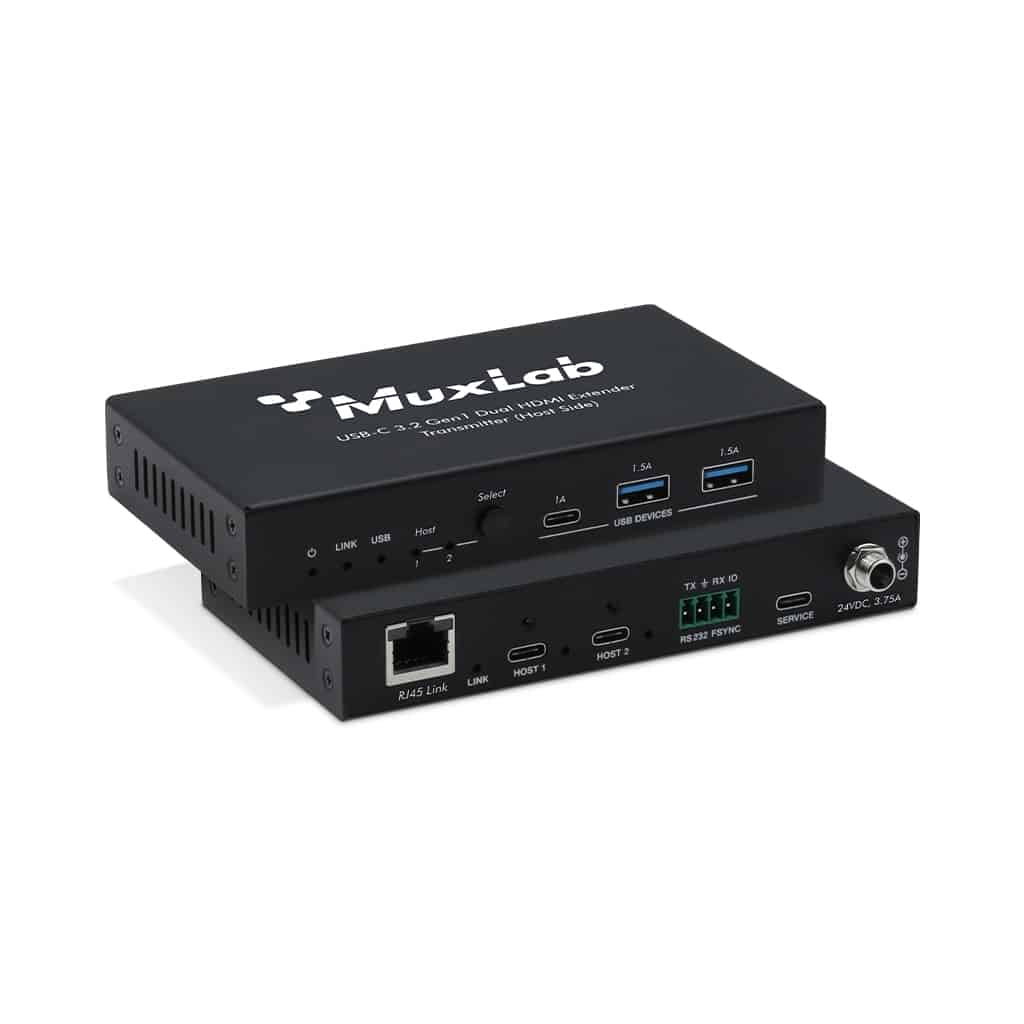

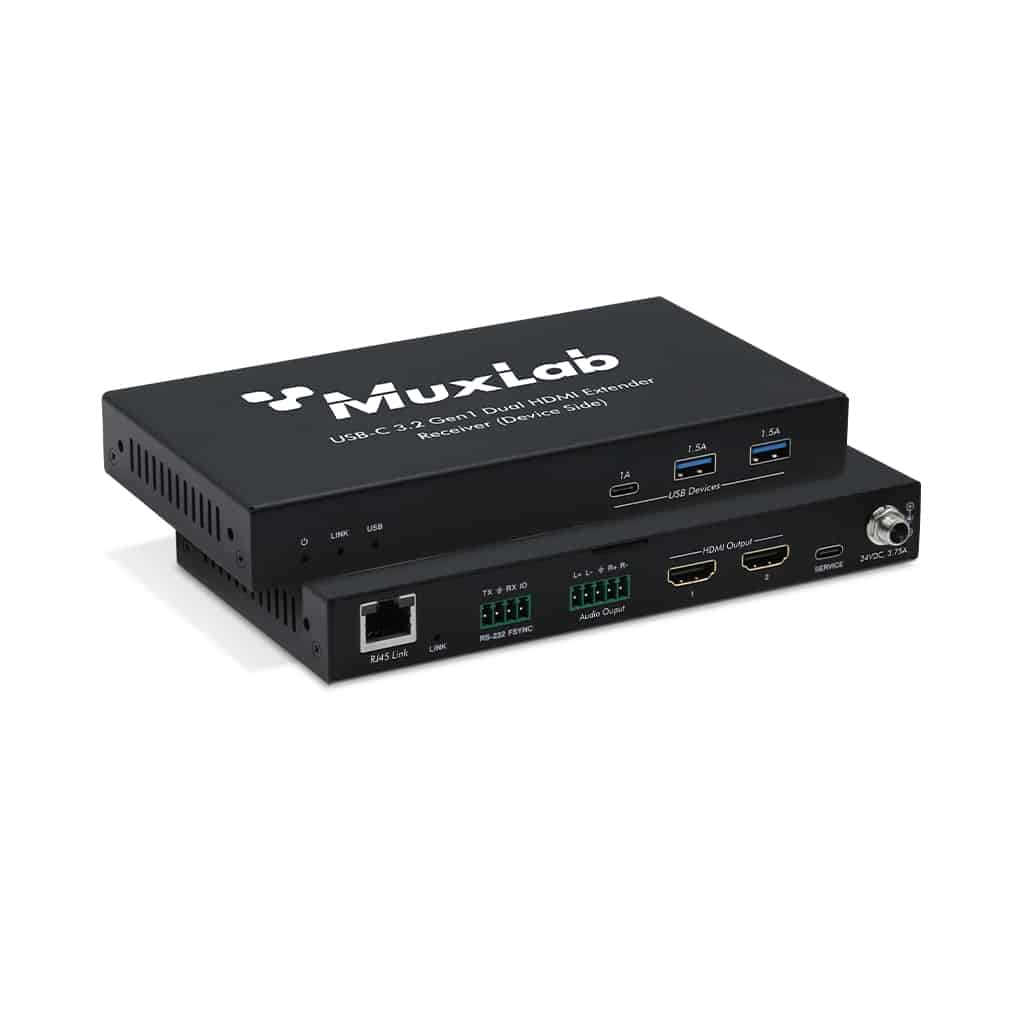

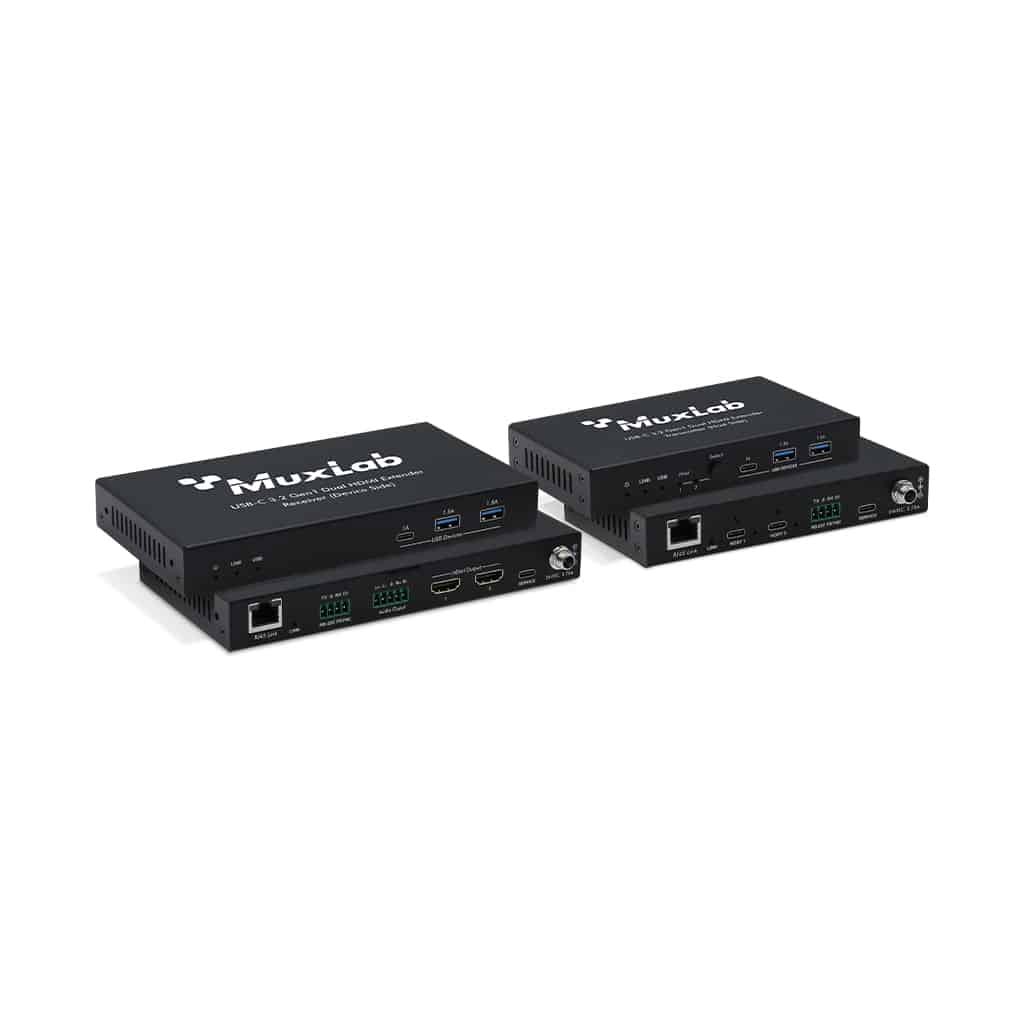

USB-C 3.2 Gen1 Dual HDMI Extender Kit, 100m

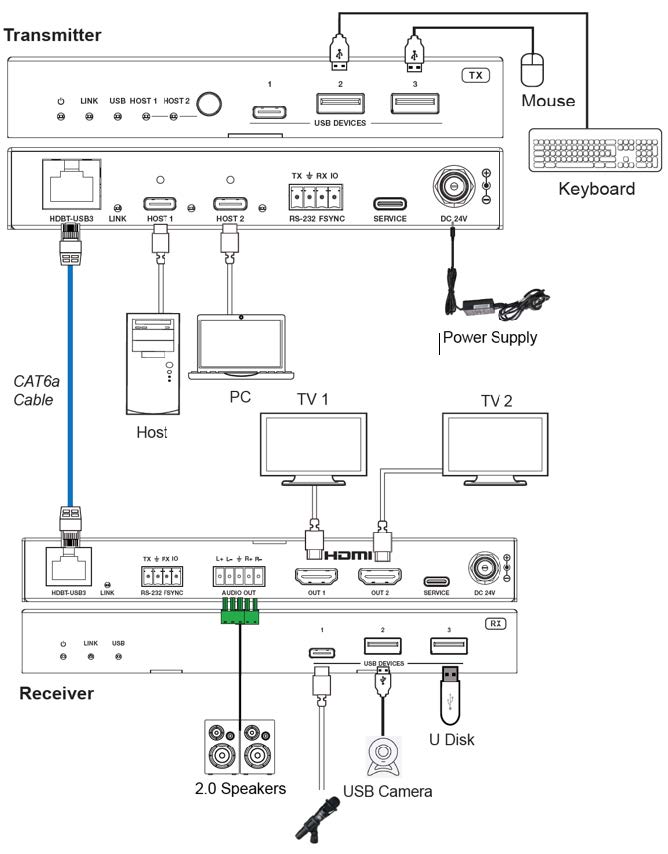

The USB-C 3.2 Gen1 Dual HDMI Extender Kit, 100m (model: 500536) enables USB 3.2 Gen1 connectivity at data rates up to 5Gbps & extends true USB up to 100m (328ft) over standard Cat6a UTP cable. Transmitter features with Two USB-C 3.2 Gen1 selectable hosts port, three local (One USB-C and two USB-A) input, one FSYSNC GPIO input and one RS-232 passthrough. Receiver features with three USB 3.2 Gen1 (One USB-C and Two USB-A) outputs, two HDMI output ports, one FSYSNC GPIO output and one RS-232 pass through. The device also supports 24V Bi-directional PoC.
The USB-C 3.2 Gen1 Dual HDMI Extender Kit, 100m is true plug and play, requires no additional software drivers, and is compatible with all major operating systems. The unit supports a wide variety of USB extension applications including security, industrial control, digital signage, scientific data acquisition and other implementations of USB standards.
- Extension of USB 3.2 Gen1 up to 100m/328ft over CAT6a cable
- USB 3.2 Gen1 connectivity with data transfer rate up to 5Gbps
- Built-in DisplayLink technology for video over USB on dual HDMI outputs, supporting up to 4K/60Hz
- Backwards compatible with USB 2.0 and USB 1.1
- Hardware acceleration for isochronous and bulk transfer
- USB-C and USB-A Ports supports 5VDC up to 1.5A and 1A on the Receiver
- Support RS-232 pass-through and FSYNC GPIO pass-through (for industry camera use)
- Support bi-directional 24VDC PoC
- Simple plug and play, no driver and setting installation required
