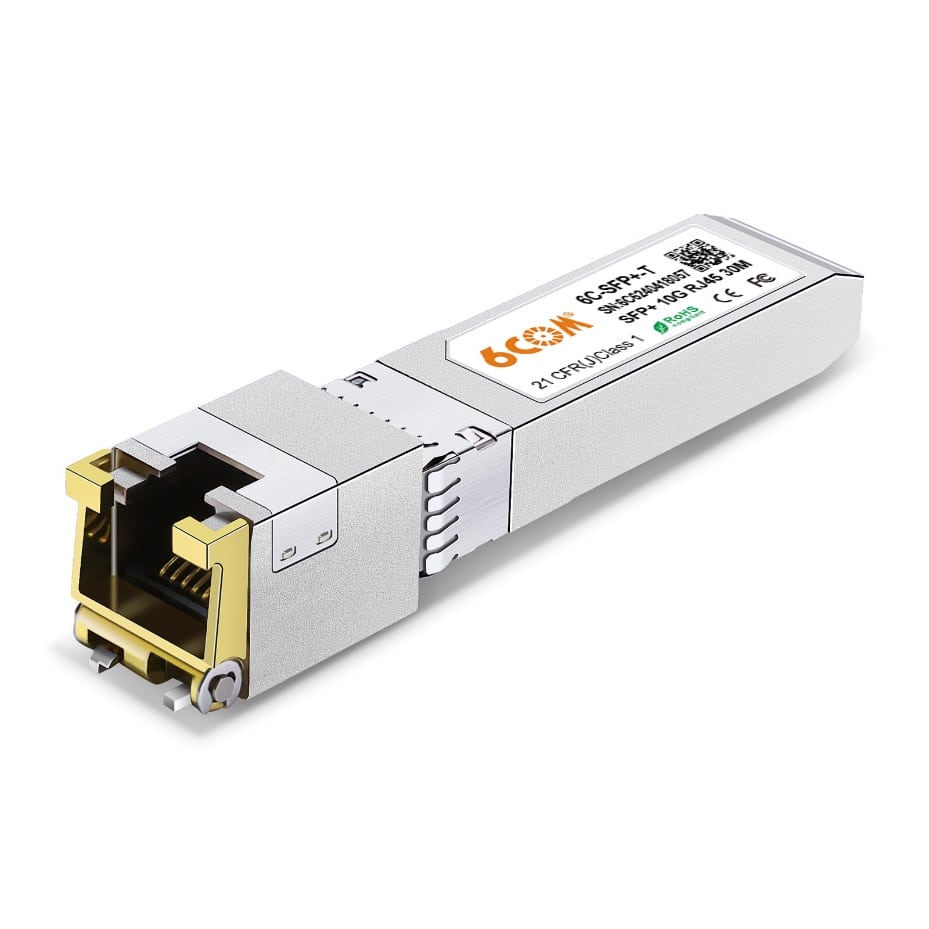

SFP module, UTP 30m

SKU: 500970-UTP Categories: ,

The copper transceiver module is a high performance integrated duplex data link for bi-directional communication over copper cable. It is specifically designed for high speed communication links that require 10Gigabit Ethernet over Cat 6a/7 cable.

  • Supports Links up to 30m using Cat 6a/7 Cable
  • SFF-8431 and SFF-8432 MSA Compliant
  • IEEE 802.3az Compliant
  • Low Power Consumption (2.5W max @ 30m)
  • Fast Retrain EMI Cancellation Algorithm
  • Low EMI Emissions
  • I2C 2 Wire Serial Interface for Serial Id and Phy Registers
  • Auto-negotiates with other 10GBase-T-NC PHYs
  • Automatic Detection and Correction of Wiring and Polarity Swaps
  • Robust Die Cast Housing
  • Bail Latch Style ejector mechanism
  • Unshielded and Shielded cable support
