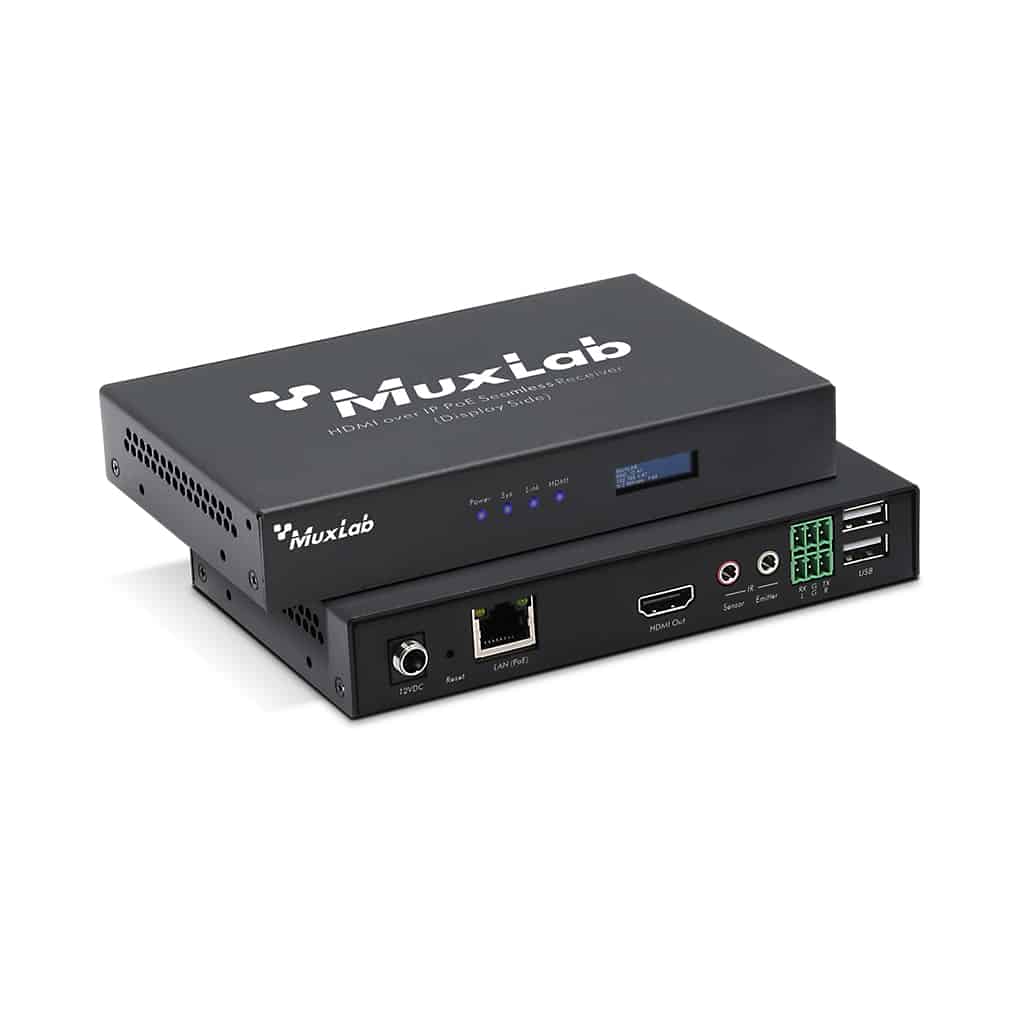

HDMI over IP PoE Seamless Receiver, 1080P
The HDMI over IP PoE Seamless Receiver, 1080P (model: 500864-RX) allows HDMI Display equipment to be extended locally up to 330ft (100m) at up to 1080P @ 60Hz resolution via Cat5e/6 cable and is compatible with the MuxLab 500864-TX transmitters to support point-to-point, point-to-multipoint and multipoint-to-multipoint configurations, Video Wall and Multiview capabilities in a low bandwidth expandable and cost effective manner, without the need to install dedicated cabling systems. The exceptionally low bandwidth requirements of this device combination allows for streaming audio/video content over a local network, over WiFi, and over the Internet for distributed installations spread throughout the globe. The receiver accepts a 1080P video @ 60Hz streams from an H.264/H.265 transmitter and displayed the content on a 1080P monitor. The device supports PoE (PD) and may be powered by a PoE (PSE) Ethernet Switch.
Applications:
Audio/Video Streaming over LAN, Wifi and Internet
Commercial and residential AVsystems
Classroom projector systems
Digital signage
Boardroom systems
Medical information systems
- Supports up to 1080P @ 60Hz video streams
- H.264/265 video codec, excellent for LAN and Internet transmission
- High image quality and ~80ms latency
- Supports seamless switching
- Supports Video Wall
- Supports Multiview with up to 4-windows per screen
- RS232, USB and infrared for remote control of end devices
- PoE powered, via PoE (PSE) Ethernet Switch
- Managed via Muximus Network Controller (500813)
