KVM HDMI over IP PoE Transmitter Deluxe,4K/30

SKU: 500850-TX Categories: , , , ,

The KVM HDMI over IP PoE Extender Deluxe, 4K/30 allows HDMI & USB equipment to be connected up to 330ft (100m) over an Ethernet LAN, supports HDMI up to 4K @ 30Hz (4:4:4)and 4K @ 60Hz (4:2:0) via Cat5e/6 cable in multiple point-to-point and point-to-multipoint configurations. The Transmitter (500850-TX) and Receiver (500850-RX) support PoE (PD) if used with a PoE (PSE) Ethernet Switch.

The Transmitter terminates to a computer server/workstation via an HDMI & USB port, The Receiver terminates to an HDMI display and up to 4 USB devices such as a keyboard, mouse, printer, drawing pad, storage device, etc., via a 4 port USB hub. In addition, The Transmitter features an HDMI loop out for connecting a local TV and the Receiver features an HDMI input for connecting a local video source.

  • Supports HDMI up to 4K @ 30Hz (4:4:4) and4K @ 60Hz (4:2:0)
  • Up to 330ft (100m) over Cat5e/6
  • One operator can manage multipleservers/workstations
  • Receiver side includes a 4-port USB hub, for KVM applications
  • HDMI loop out on TX

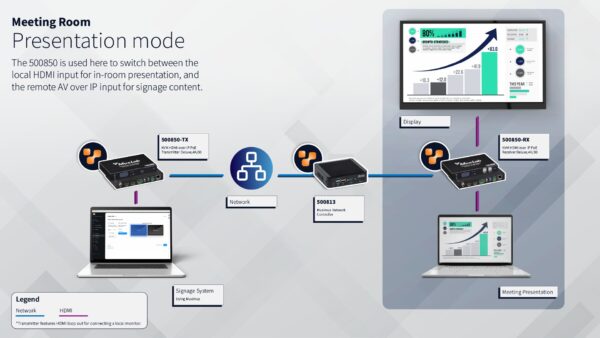

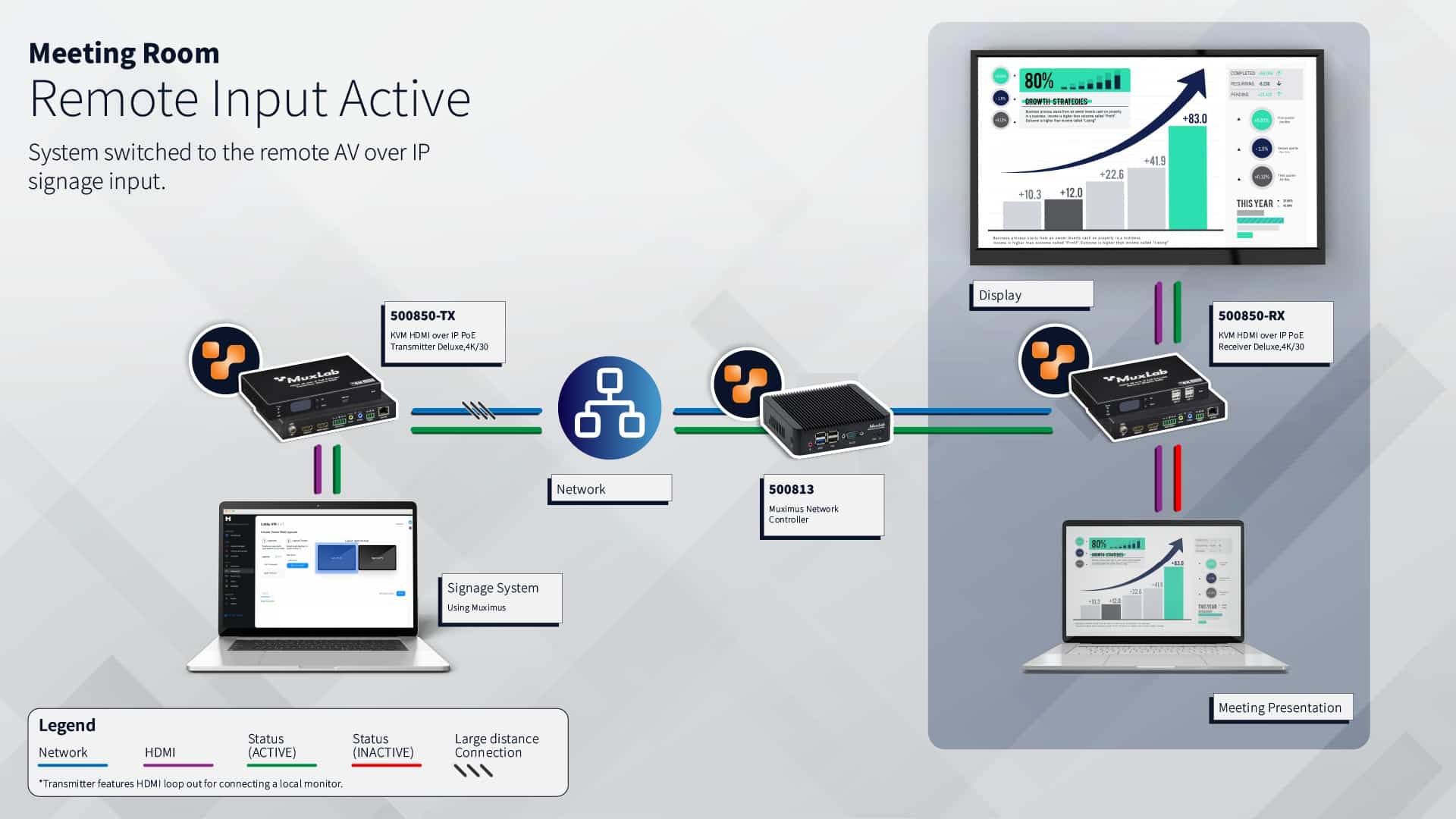

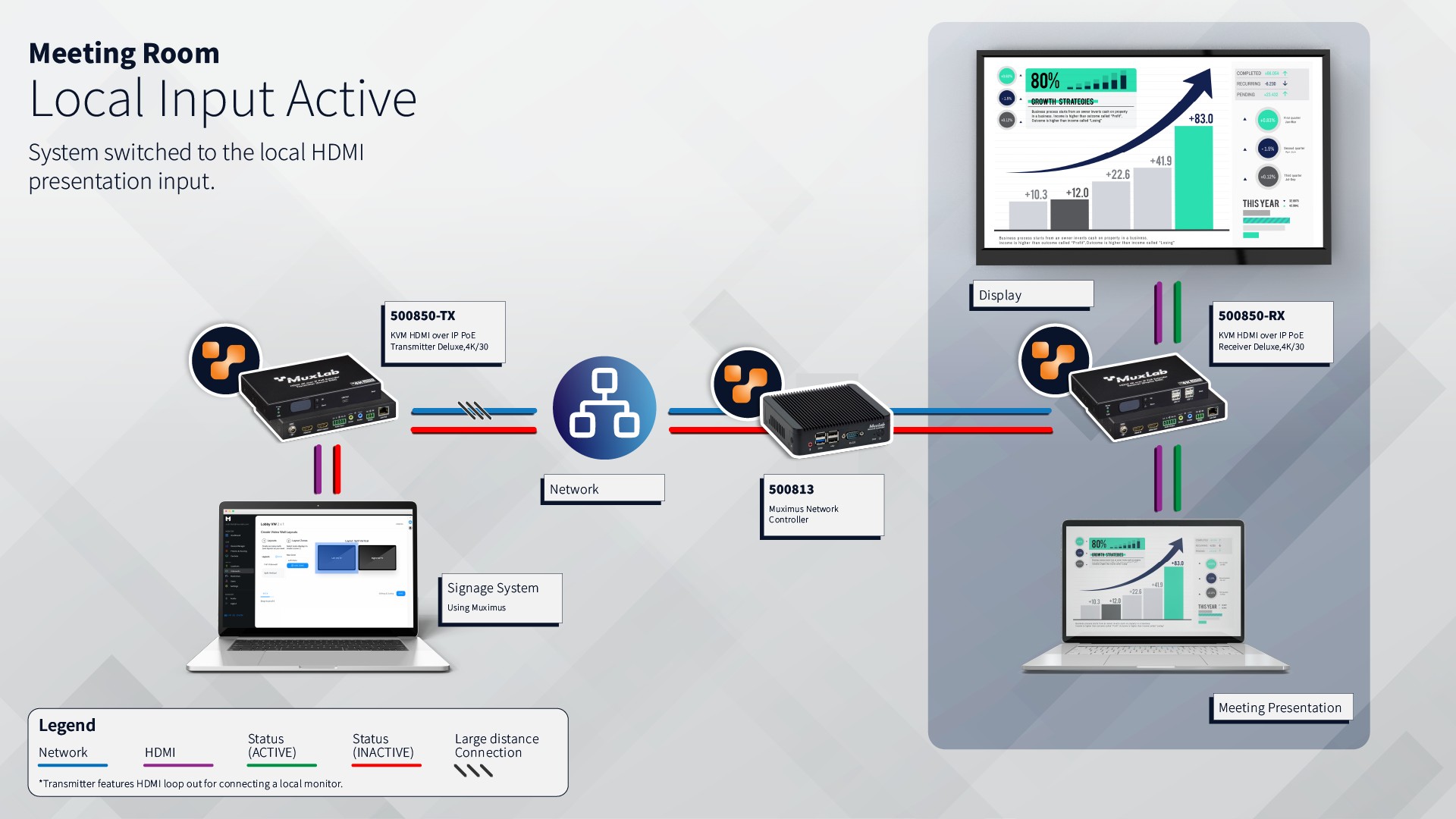

  • HDMI local input on RX (500850-RX)
  • 100 channel selector

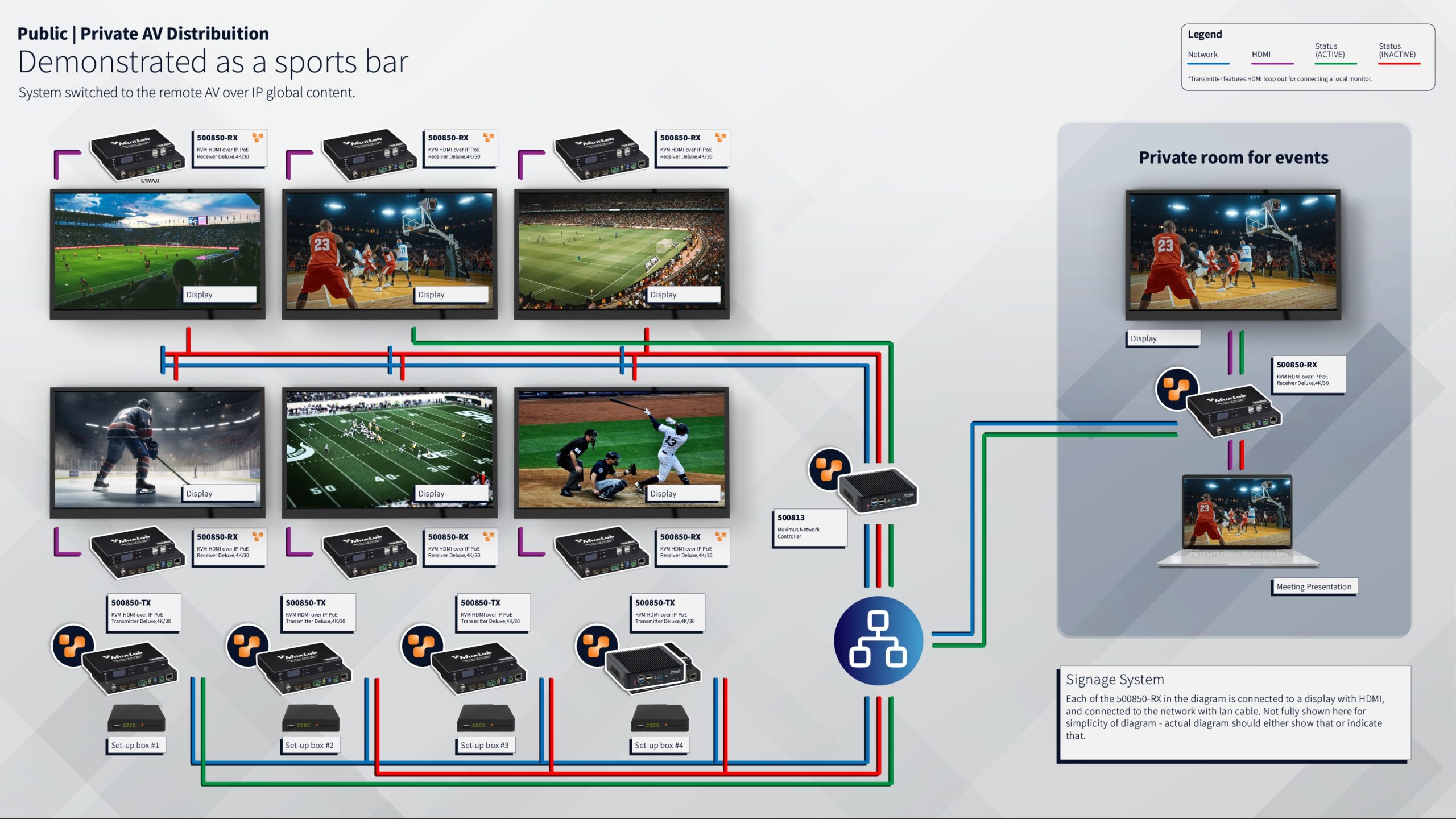

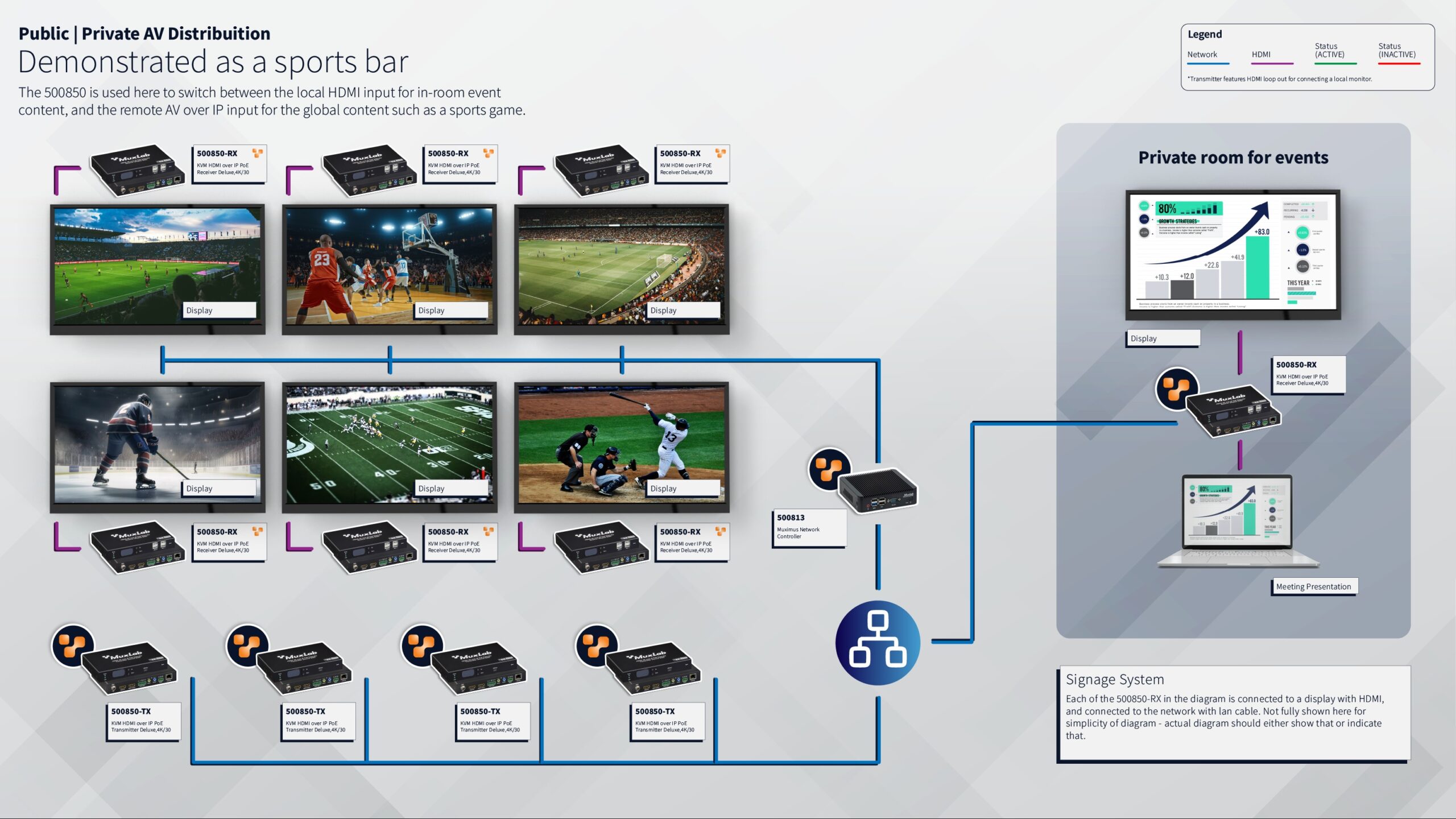

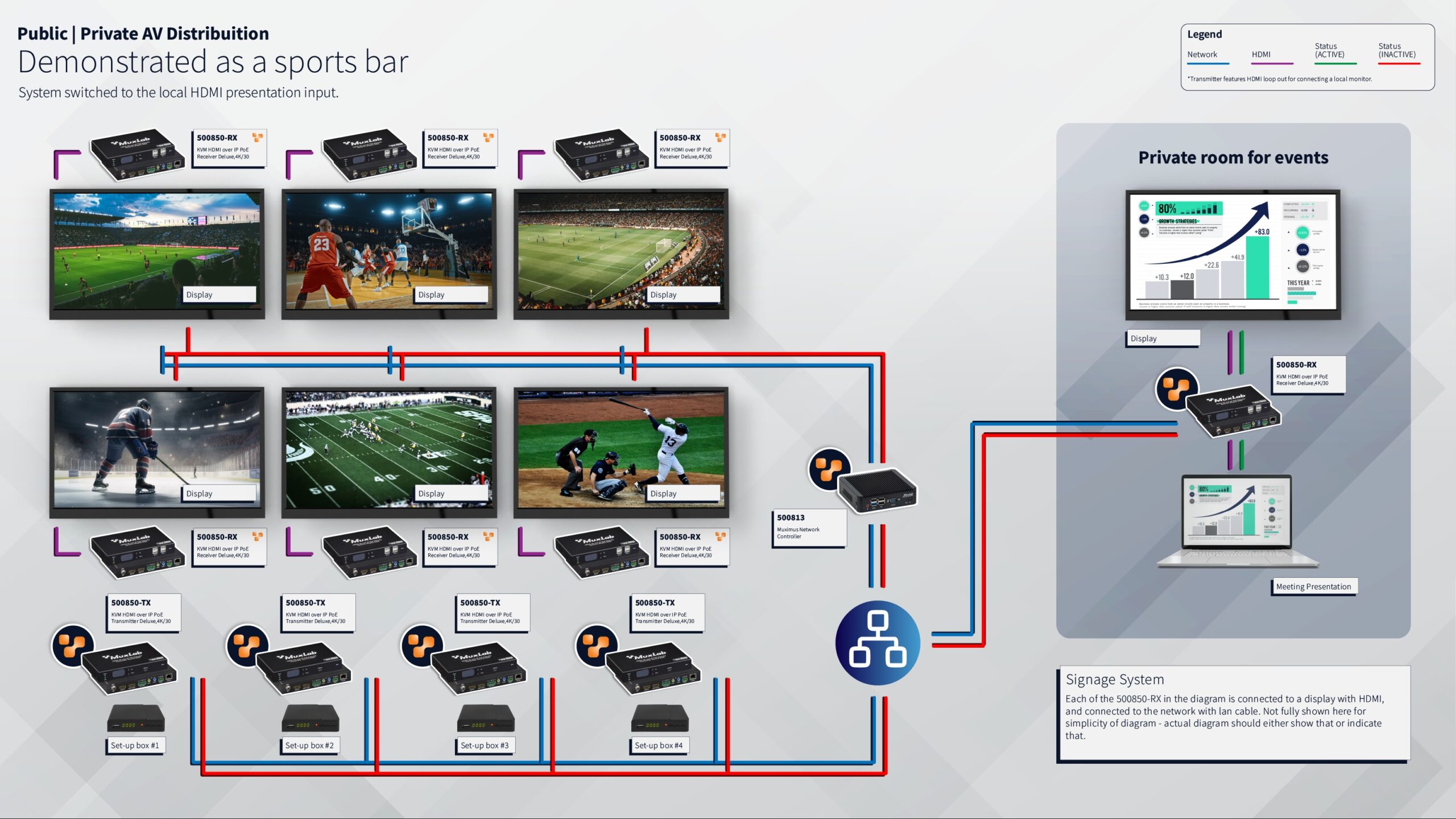

  • Supports multiple point-to-point, and point-to-multipoint applications
  • Supports PoE powered
  • Supports balanced/unbalanced audioinsert (TX), and balanced/unbalancedaudio extract (RX)
Weight 0.680 kg
Dimensions 0.85 H x 2.71 W in (6.89 × 2.17 cm)
