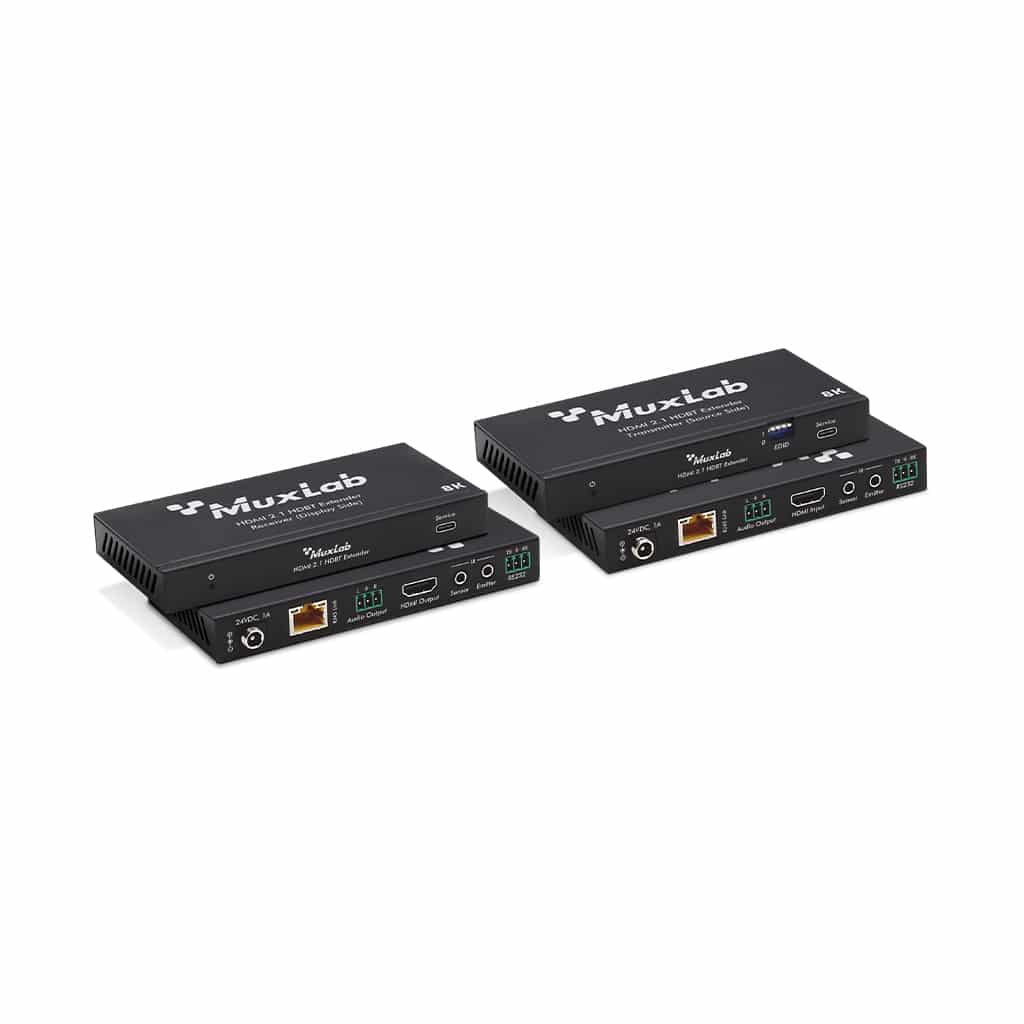

HDMI 2.1 40Gbps HDBT Extender Kit, 90m
The HDMI 2.1 40Gbps HDBT Extender Kit, 90m enables HDMI 2.1 connectivityat data rates up to 40Gbps & extends HDMI 8K up to 90m (295ft), HDMI 4K up to 120m(394ft) and 1080p up to 150m (492ft) over standard Cat6 UTP cable.

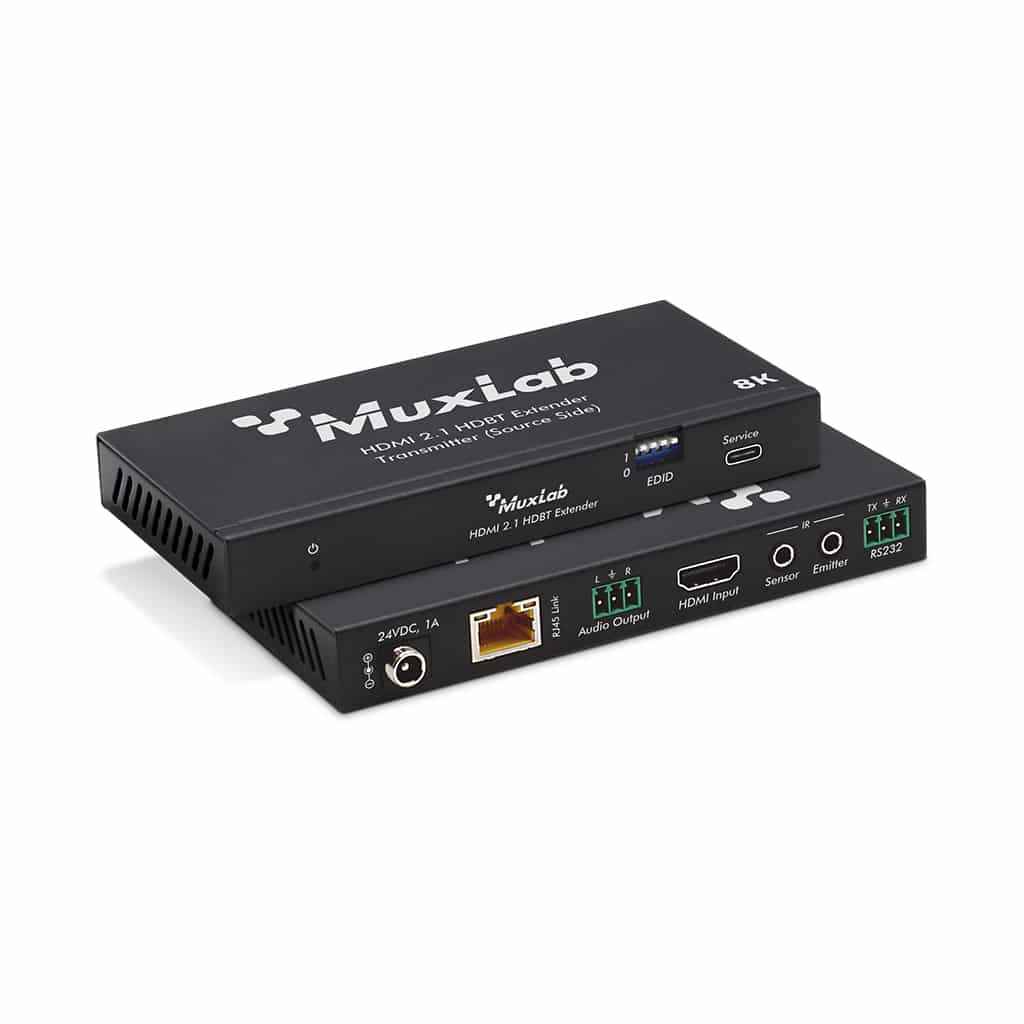

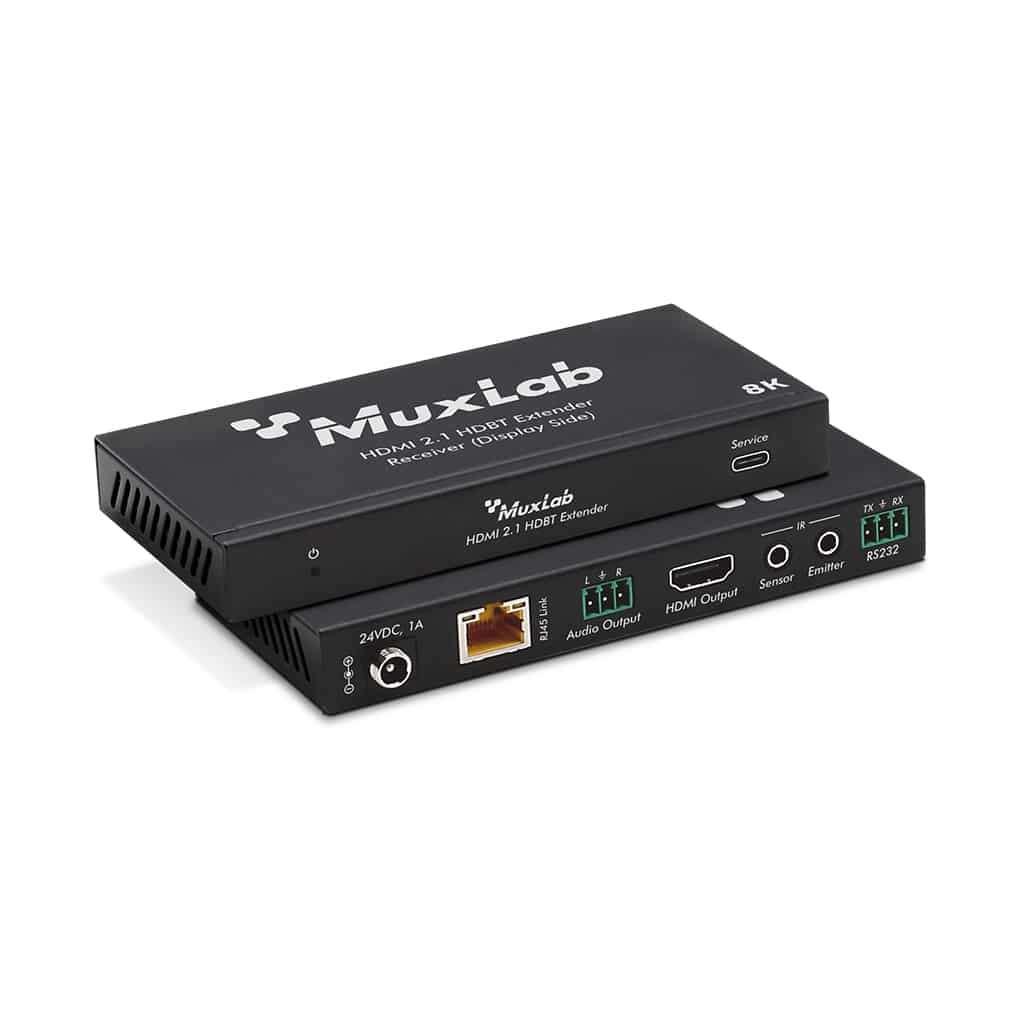

Transmitter features withHDMI input, bidirectional IR, analog audio de-embedding and RS-232 pass-through. Receiverfeatures with HDMI output, bidirectional IR, analog audio de-embedding and RS-232 pass-through. The device also supports 24V Bidirectional PoC.
The HDMI 2.1 40Gbps HDBT Extender Kit, 90m supports advanced functionalities like VRR, FVA,ALLM, HDR10, HDR10+, HLG and Dolby Vision. All audio format are supported.
Applications:
Conference Rooms
Classroom Projector Systems
Collaborative PC Systems
Digital Signage
Educational Institutions
Boardroom Systems
- Video bandwidth up to 40Gbps FRL and 18Gbps TMDS
- Supports all industry standard video resolution
- HDMI re-clocking on the HDBT receiver is helpful to solve HDMI and HDCP compatibility and hand-shaking issues
- Supports bidirectional IR, RS232 and CEC pass-through
- Supports VRR, FVA and ALLM
- Supports HDR10, HDR10+, HLG and Dolby Vision pass-through
- Supports bidirectional PoC (Power over Cable)
- Both the transmitter and receiver support analog audio de-embedding
- Simple plug and play installation
