HDMI 2.0 Fiber Extender Kit, Single Mode

SKU: 500485 Categories: ,

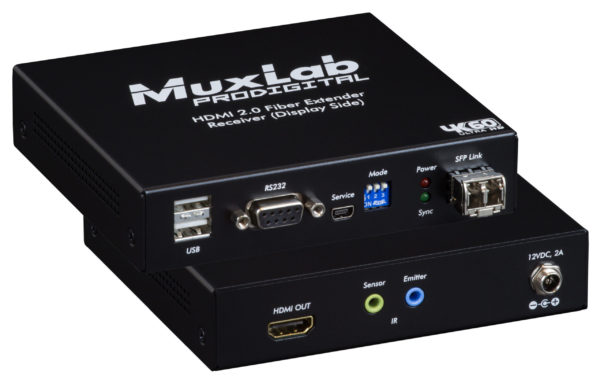

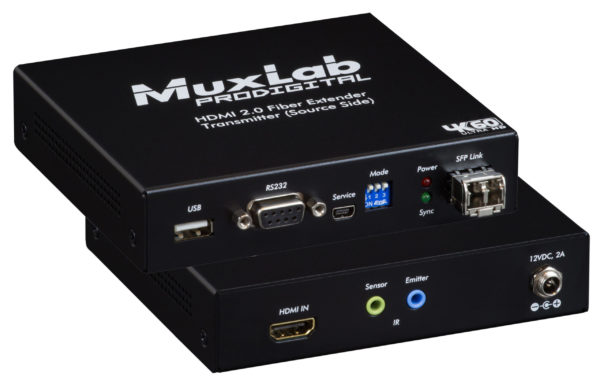

The HDMI 2.0 Fiber Extender Kit, Single Mode (model: 500485) allows one HDMI 2.0 and one USB 1.1 channel to be transmitted up to 10km (6.25miles) at all resolutions up to 4K2K@60Hz over single mode fiber optic cable in a point-to-point configuration. In addition, the HDMI 2.0 Fiber Extender Kit, Single Mode is HDCP 2.2 compliant and supports IR and RS-232 pass-through and keyboard/mouse USB signal transmission.

Ideal for: KVM applications, commercial and residential AV systems, classroom projector systems, boardroom systems, collaborative PC systems, medical information systems.

  • Supports HDMI 4K @ 60fps (4:4:4 8bits)
  • Supports HDR, which is 4K @ 60fps (4:2:0 10bits)
  • Supports HDCP 2.2
  • Extends HDMI signals up to 10km over single mode fiber optic cable
  • Supports USB 1.1 for keyboard and mouse only
  • Bi-directional IR pass-through
  • Supports full frequency IR signal from 20KHz to 60KHz

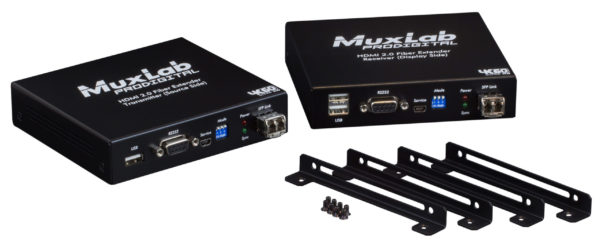

  • Includes wall-mount bracket kit
Weight 1.600 kg
Dimensions 1.24 H x 2.71 W in (6.89 × 3.15 cm)
