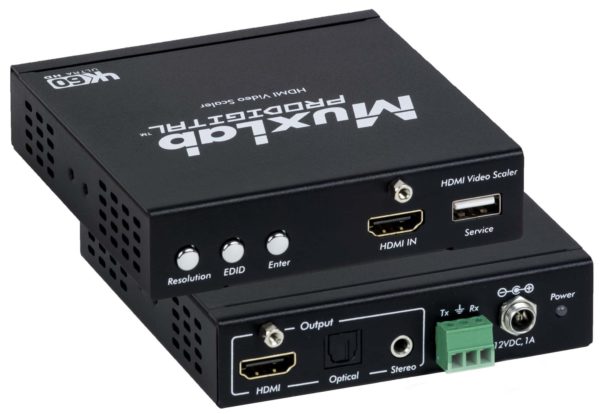

HDMI Video Scaler, 4K/60

SKU: 500438 Categories: ,

The HDMI Video Scaler allows one HDMI source to be distributed to one HDMI display. The scaler supports video sources up to 4096 x 2160 @ 60 Hz, 12 bit color and HD audio. The scaler is able to upscale up to 3840 x 2160 @ 60Hzand downscale to 1024 x 768 @ 60Hz. It is HDCP 2.2 compliant, has audio extraction capability, OSD (On Screen Display) configuration menu, and may be controlled via RS232.

Applications:

Commercial and residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, medical information systems.

ÿ

  • Distributes one HDMI source to one HDMI display
  • Scales up video to 3840 x 2160 @ 60Hz, or scales down to 1024 x 768 @ 60Hz
  • Supports 8, 10 and 12 bit color
  • HDCP 2.2 compliant
  • Supports pass-through of all audio formats up to Dolby Atmos and DTS:X
  • Supports audio extraction on digital optical TosLink and analog 2CH 3.5mm jack
  • Supports firmware updates via USB port
  • Managed via push buttons and free Windows PC application
Weight 0.500 kg
Dimensions 2.2 H x 5.91 W x 8.46 L in (21.50 × 15.00 × 5.60 cm)
filters

1080p, 4K/30, 4K/60, Audio Extract/Insert, HDCP, HDMI, RS232, Uncompressed, USB
