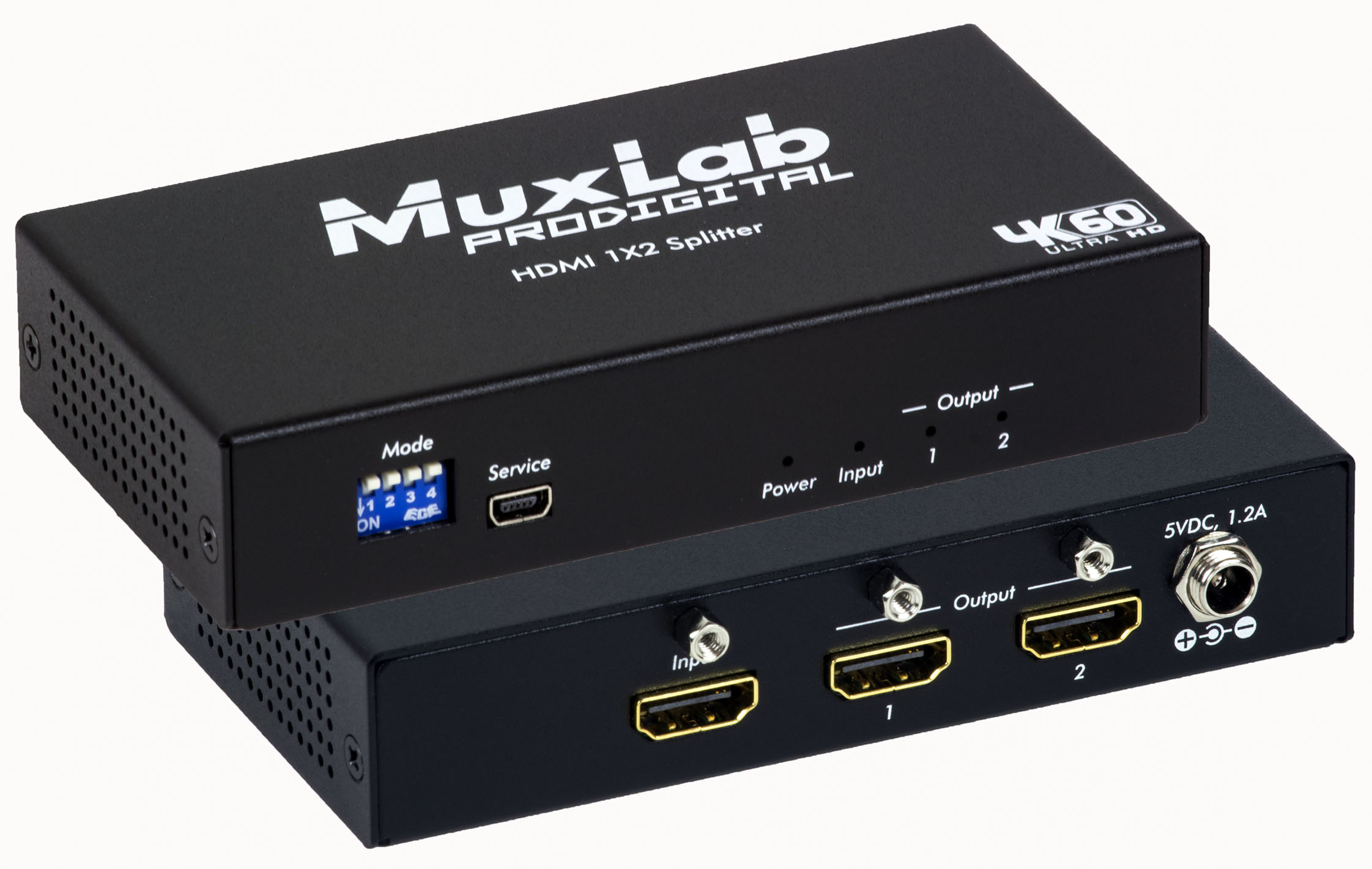

HDMI 1×2 Splitter, 4K60

SKU: 500425 Categories: ,

The HDMI 1×2 Splitter, 4K60 (500425) allows one (1) HDMI 2.0 source to be distributed to up to two (2) HDMI displays. The HDMI audio video splitter supports up to 4K (3840 X 2160) video @ 60Hz, HDR, Deep Color and HD audio. The HDMI audio video splitter is HDCP 1.4 & 2.2 compliant, independent down-scaler from 4K to 1080p at each output, and features LED diagnostics. Additionally, all connectors are on the rear panel for neater cabling.

Typical Applications:

  • Commercial and residential AV systems
  • Classroom training systems
  • Digital signage
  • Boardroom systems
  • Collaborative PC systems
  • Medical video systems
  • Distribute one HDMI 2.0 source to two displays
  • Supports up to 4K @ 60Hz (4:4:4)
  • HDCP 1.4 and 2.2 compliant
  • Supports HDR and Deep Color
  • Supports LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
  • 16 position rotary switch for EDID management
  • Independent down-scaler from 4K to 1080p at each output
  • LED diagnostic
  • Connectors on rear for neater cabling
Weight 0.360 kg
Dimensions 2.95 H x 5.51 W x 9.06 L in (23.00 × 14.00 × 7.50 cm)
filters

1080p, 1×2, 4K/30, 4K/60, HDCP, HDMI, Uncompressed
