HDMI 4X4 Matrix SWX Kit, HDBT, PoC, 4K/60

SKU: 500412-V2 Categories: ,

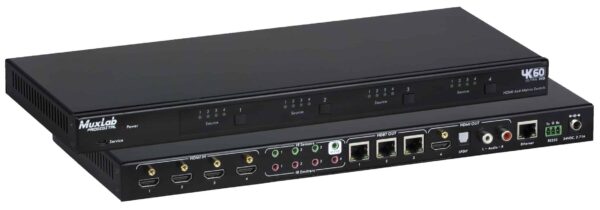

The HDMI 4X4 Matrix Switch Kit, HDBT, PoC, 4K/60 (4:4:4) (model: 500412-V2) allows up to four (4) different HDMI sources to be connected and/or distributed to up to four (4) HDMI displays. The unit supports four (4) HDBT outputs for long distance connectivity and four (4)HDMI outputs for local connectivity. The Kit includes four (4) HDBT PoC Receivers which are powered by the Matrix Switch, and support distances up to 150m at 1080p and 120m at 4K viaCat5e/6/7 cable. The unit may be managed via front panel pushbuttons, IR, RS232 and webserver interface.

  • Supports HDMI 2.0b (4K/60 4:4:4) & HDCP2.2
  • 4 HDBT outputs, support distances up to150m at 1080p and 120m at 4K
  • Kit includes 4 HDBT Receivers which are powered by the matrix switch via 24VDCPoC
  • HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
  • Supports 4K to 1080P Down Scaler for each output port
  • Supports an IR matrix
  • Powerful EDID management and CEC control are supported
  • Built-in GUI web interface
Weight 5.700 kg
Dimensions 1.55 H x 6.2 W in (15.75 × 3.94 cm)
